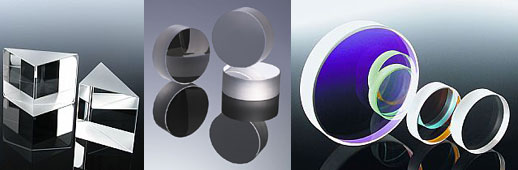

Laser Mirror
Laser Mirrors are used in a wide range of products based upon laser optics. There are some specifications of laser mirrors below.
Features of Laser Mirror:
- Made from BK7 glass, fused silica or UV grade fused silica.
- Polished to high surface quality.
- Standard substrates are available with a variety of radii of concave curvature.
- Wide selection of shapes and sizes, with plano, spherical or cylindrical surfaces are also available.
Many manufactures offer three substrate materials, spanning a range of thermal expansion coefficients. For applications in which thermal shock is absent and thermal stability is not critical, BK7 glass is a suitable and inexpensive material. For applications requiring high thermal stability or involving severe thermal shock, fused silica and UV grade fused silica is a good choice.
Part Number Description:
LM-1064-D-T-R-A-%-yy
- LM: laser mirror. R>99.5%.
- 1064: laser wavelength, nm.
- D: mirror diameter, m. If rectangular, it is AxB.
- T: thickness, mm.
- R: radius of curvature, mm. It is flat mirror if ther is no this number. It is plano-convex if it is minus.
- A: incidence angle, degree. It is normal incidence if there is no this number.
- %: tranmittance of output coupler.
- yy: other marks.
Remark:
- Regarding f50x3mm, 50 means diameter, 3 means thickness, unit is mm.
- Regarding R=10%, R means reflectivity and unit is %.
- Regarding T=10%, T means transmittance and unit is %.
- Regarding R=50mm, R means radius of curvature and unit is mm.
- HR1064nm means high reflectivity at 1064nm (>98%).
- HT532nm means high transmittance at 532nm (>98%).
- Plano-concave means that one surface is flat and another surface is concave.
