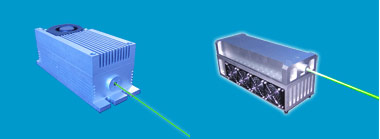

DPSS Laser

A wide range of diode-pumped solid state laser products are offered in China,  smallest DPSS laser heads, low cost modules, low power and high power laser systems and high quality single longitudinal mode laser systems with different power output and wavelengths.

Characteriscics:

• Stable and adjustable output power.
• Over-temperature and over-current protection.
• External modulation available.
• Suitable for fluorescence excitation, raman spetroscopy, optical spectrum analysis, etc.

Specifications:

• Different types of DPSS laser different wavelength (nm), such as 457, 473, 532, 660, 917, etc.
• Different wavelength different output power (mW), such as 1~200, 1000~3000, 400~2000, etc.
• Working Mode: CW
• Beam Mode: Transverse, TEM00, Multi-longitude
• Spectral Linewidth (nm) <0.1
• Polarization: Line polarization
• Polarization Ratio >8:1
• Beam Quality (M2 factor) <1.2
• Beam Divergence (full angle, mrad) 2.0±0.2, 1.2±0.2, etc.
• Beam Diameter at Aperture (mm) 3.5.±0.2, 1.2±0.2, etc.
• Beam Roundness >90%
• Power Stability (RMS, over 8 hours)
• Cooling System: TEC
• Warm-up Time (minutes) <15
• Operation Temperature (¡æ)18~30
• Expected Lifetime (hours) >10000
